Die Storage Solutions
JML Services: Material Handling Equipment and Installation.
We are always here to serve you. Call us today at 866-565-4944.

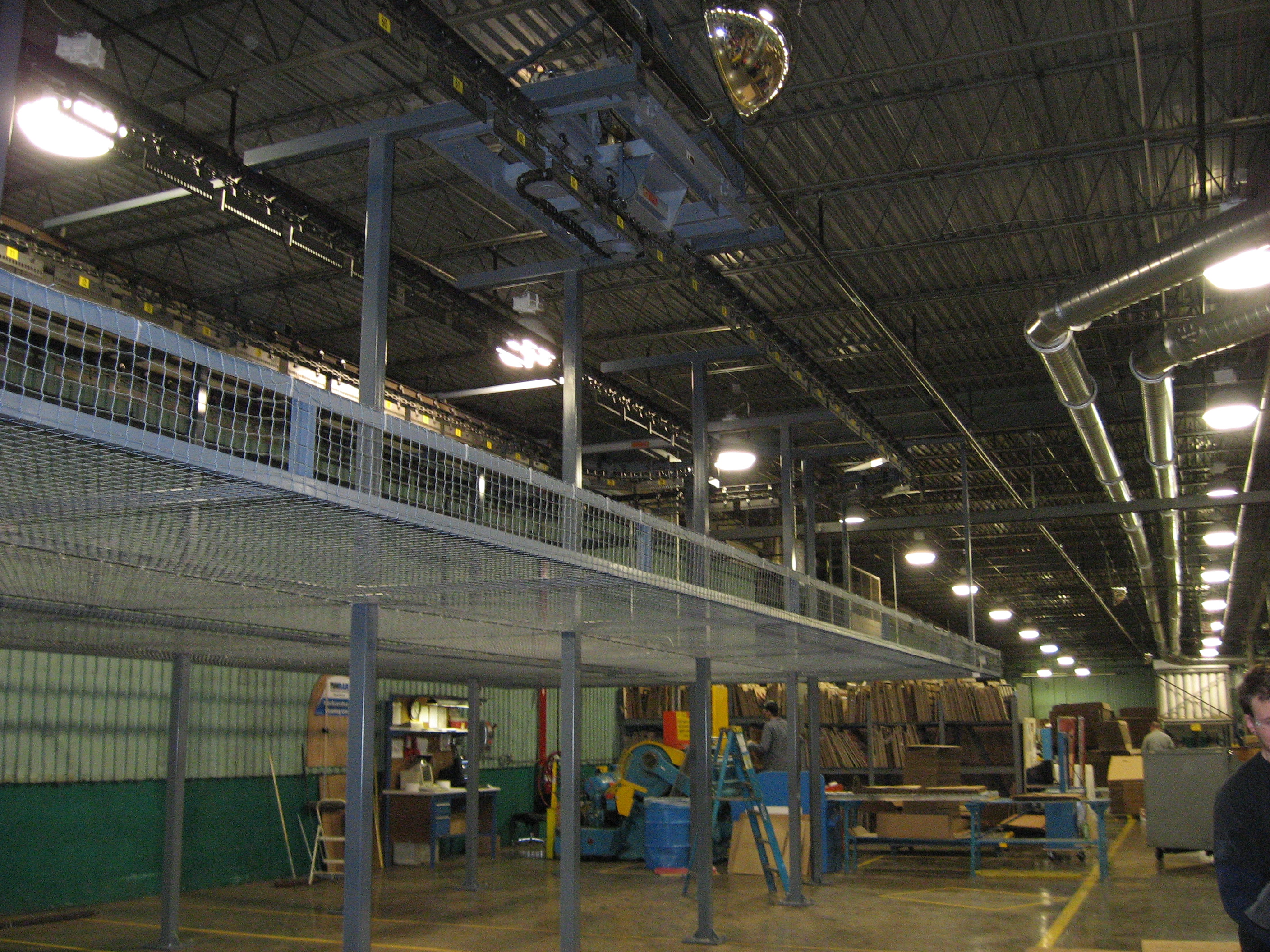

Photo shows screen-guard and
1. Photo shows screen-guard and
floor support system.

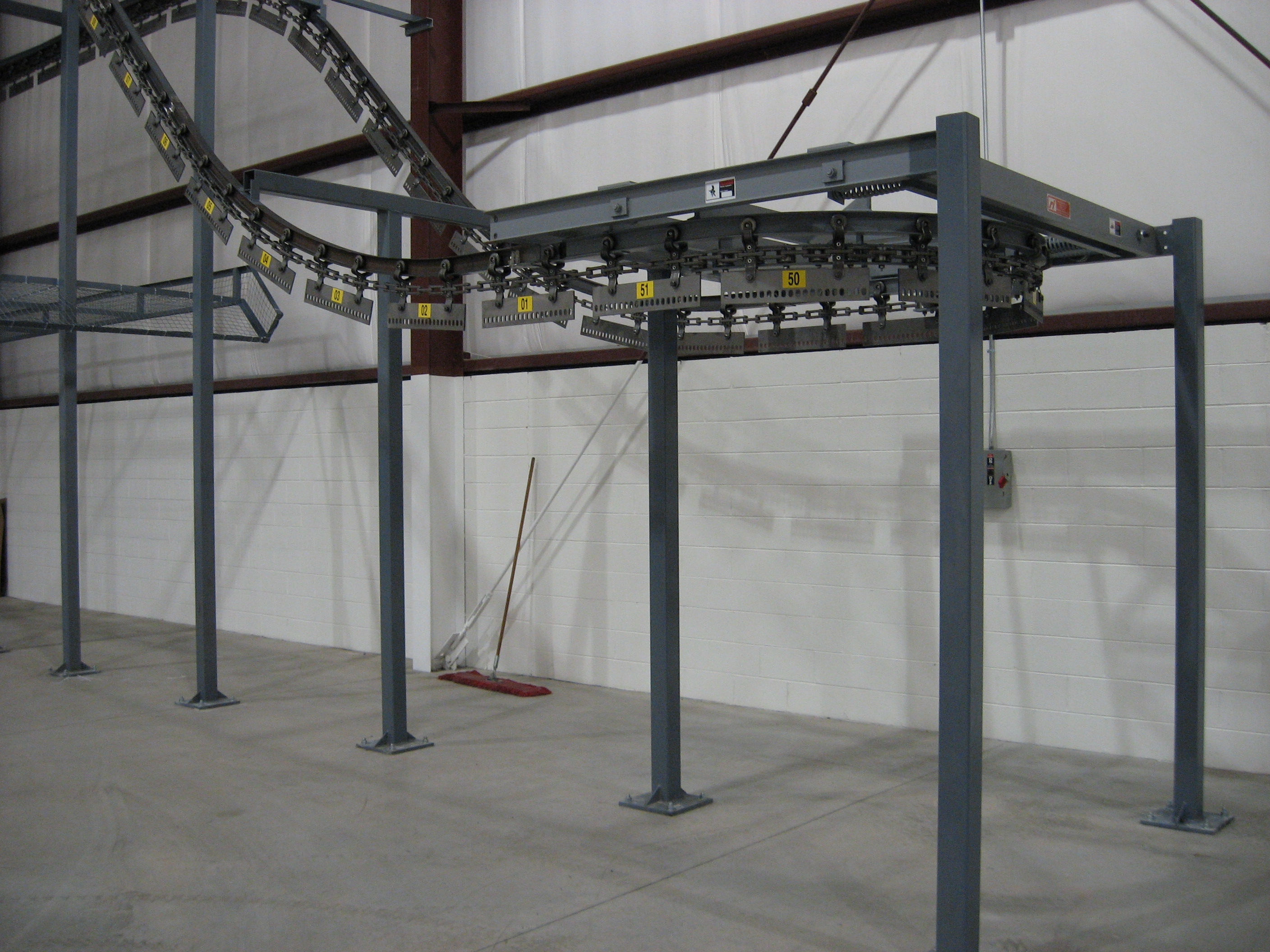

All components are super heavy duty.
2. All components are super heavy duty.

If you would like more information on die storage solutions
contact Paul Hamill at 419-882-6733 or click here.

PRINTING PLATE STORAGE SYSTEMS,
RUGGED AND RELIABLE
3. Gain floor space and store cutting
dies under conveyor.
4. Typical load/unload dip in conveyor.
We have installations going on thirty years of reliable service with little maintenance and no down time due to overloading. Our design takes into account that operators tend to overload and even abuse printing die storage conveyors. Our motor drive has three times the chain pull capacity of any other system. We can store up to 5,000 printing dies with a single drive. Our system is flexible and can be configured to fit your facility with floor or ceiling supports (or a combination).

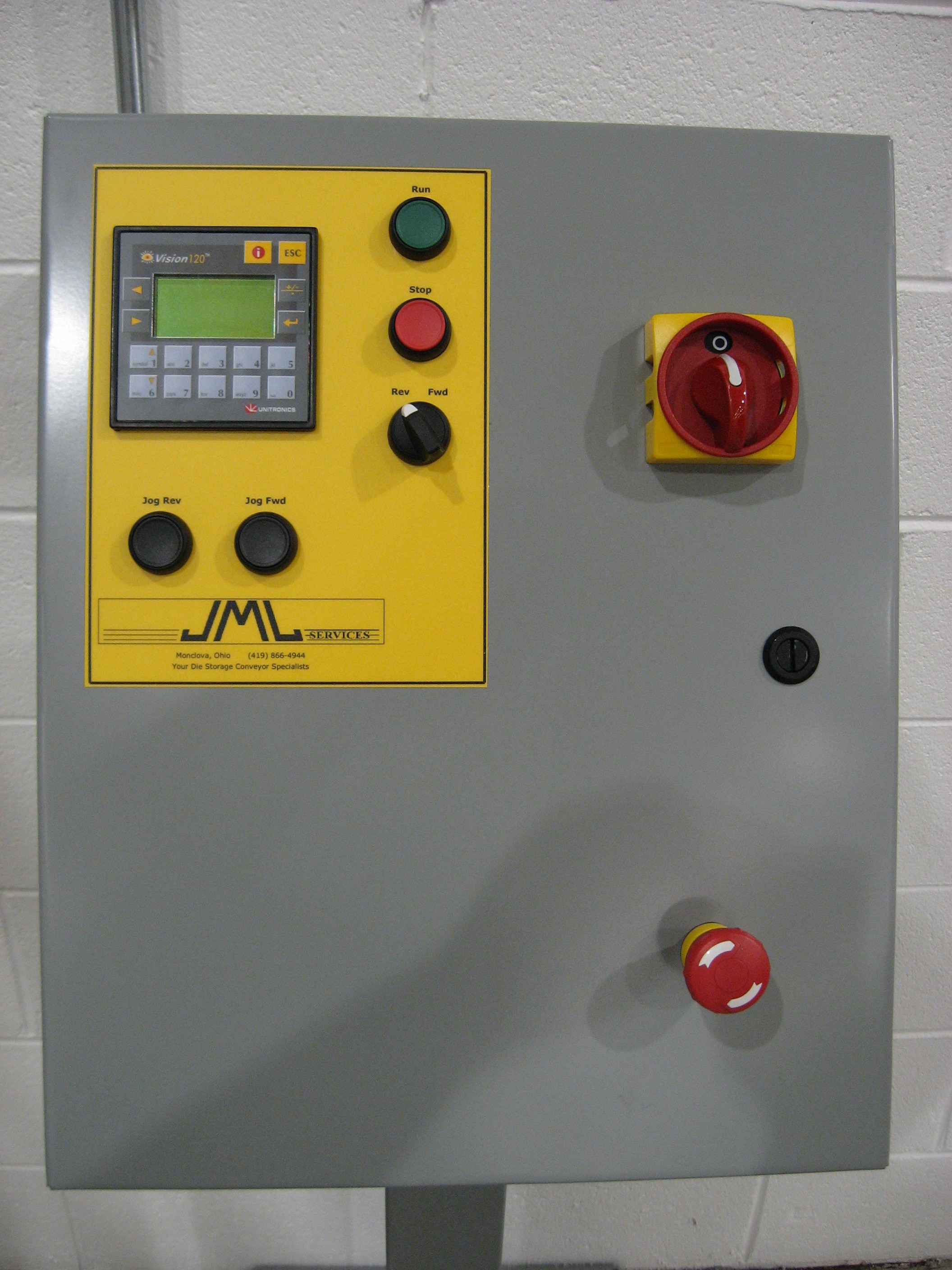

Gain floor space, stop ‘hunting’ for plates and let the conveyor do the work for you. State-of-the-art controls bring the plates to the operator via the shortest distance.

JML Services also moves, modifies and rebuilds existing systems. We have installed more new systems than anyone else in the country, and you can count on us to solve your storage problems.

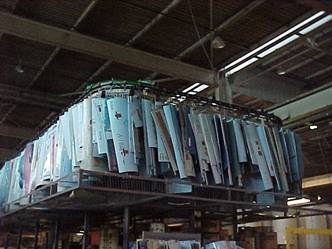

Printing dies are where they belong Organized and out of the way
5. Printing dies are where they belong— Organized and out of the way.

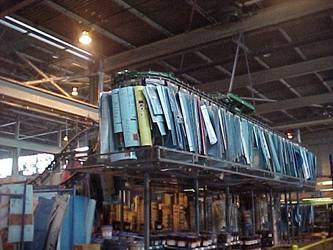

Making use of the cube storage
6. Making use of the cube—storage
as it should be.

If you would like more information on die storage solutions
contact Paul Hamill at 419-882-6733 or click here.

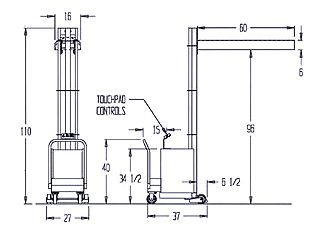

Model CDC-33 Cutting Die Cart

Model CDC-33 Cutting Die Cart is designed to pick cutting dies out of well organized storage racks. The special tong is battery operated vertically and combined with a push cart such that the only manual handling of the die is at the machine.

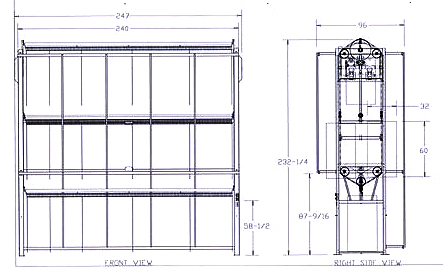

vertical storage carouse

Space a problem? Our vertical storage carousel is designed to hold up to 800 printing plates in a 20’ X 8’ X 20’ high footprint! Store printing dies up to 32” wide by 60” high. Controls bring the dies around to an optimum picking height for the operator.

If you would like more information on die storage solutions
contact Paul Hamill at 419-882-6733 or click here.
